Water Jet Weaving System

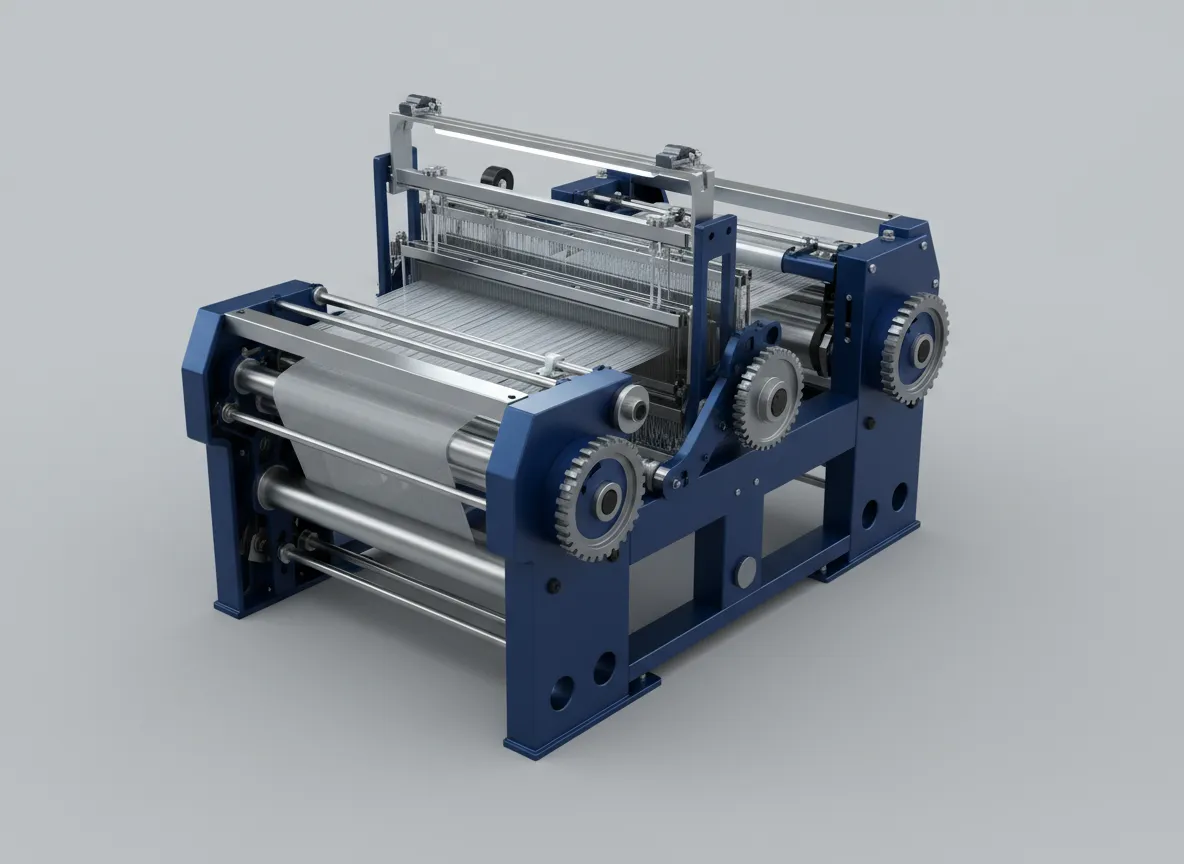

PL5810 High-Speed Water Jet Loom

Name: PL5810 High-Speed Water Jet Loom
Brand: Qingdao Jinxin Hejia Machinery Co., Ltd.

High-efficiency water jet weaving machine designed for hydrophobic synthetic filament, polyester, and nylon fabrics.

Source & Supply Chain Note

Manufactured by Qingdao Jinxin Hejia Machinery Co., Ltd. (China) and supplied in India by Poulo Machinery (Surat, Gujarat).

Key System Advantages:

Designed for high RPM continuous synthetic filament weaving with precise water jet pressure delivery
Flexible weft selection from single jet to 1–6 jet electronic free selection
High versatility supporting crank, cam, dobby, and jacquard shedding configurations
Heavy-duty anti-corrosion stainless steel water channels, pump units, and drainage systems
Comprehensive let-off and take-up options tailored to warp beam sizes and fabric density requirements

Request PL5810 Price Quote View Full Spec Table

Machine Overview & Operating Scope

The PL5810 High-Speed Water Jet Loom delivers excellent productivity for synthetic fabric weaving, including lining fabrics, taffeta, satin, umbrella cloth, and technical synthetic textiles.

Manufactured by Qingdao Jinxin Hejia Machinery Co., Ltd. (China) and distributed by Poulo Machinery (Surat, Gujarat), the machine offers precise water jet pump dynamics and anti-corrosion components.

Engineered to operate reliably up to 1100 RPM design maximum speed, depending on yarn quality, reed width, shedding motion, and factory configuration.

Catalogue Data

PL5810 Technical Specifications

Note: Specifications, installed motor power, and maximum operating speeds depend on machine width, fabric construction, and selected configuration. Final technical configuration must be confirmed prior to ordering.

Dimensions & Speed

Optional Reed Width

150 cm to 380 cm

Design Maximum Speed

Up to 1100 RPM (Actual operating speed depends on yarn, fabric structure, and configuration)

Weft Insertion & Selection

Weft Insertion System

High-pressure water pump with ceramic plunger nozzle assembly

Weft Selection

Optional 1 to 6 jet electronic free weft selection

Shedding Options

Shedding Mechanisms

Crank shedding, Cam shedding, Dobby shedding, and Jacquard options

Weft Density & Motion Systems

Weft Density Range

4 to 100 pieces/cm (Configuration dependent)

Let-off System

Mechanical or Electronic Let-off (ELO)

Take-up System

Mechanical or Electronic Take-up (ETU)

Motor Power Rating

Configuration dependent (1.5 kW – 7.5 kW range depending on width, pump count, and shedding setup)

Engineering Anatomy

PL5810 Major Operating Subsystems

Labeled water jet loom anatomy covering warp beam, let-off, drive, lubrication, take-up, control panel, and frame. Open full size to inspect every numbered part.

Labeled anatomy diagram of Poulo water jet loom main parts and functions — Water jet loom main parts and functions — numbered callouts identify warp beam, let-off, drive system, lubrication & air, rollers, cloth take-up, control panel, and frame.

High-Precision Water Pump Assembly

Features high-density ceramic plungers and wear-resistant nozzles to maintain uniform water jet pressure during continuous high-speed insertion.

Corrosion-Resistant Water Management

Stainless steel suction boxes, splash guards, and drainage troughs prevent moisture accumulation and extend machine longevity.

Anti-Vibration Box Frame

Enhanced structural mass distribution ensures low noise and minimal vibration during multi-pump or wide-width operation.

Multi-Jet Electronic Weft Selection

Allows multi-color or multi-yarn weaving with precise electronic timing synchronization between pump actuation and nozzle firing.
